Logic MAX Heat IE
Choose the content that is relevant to you:
Description

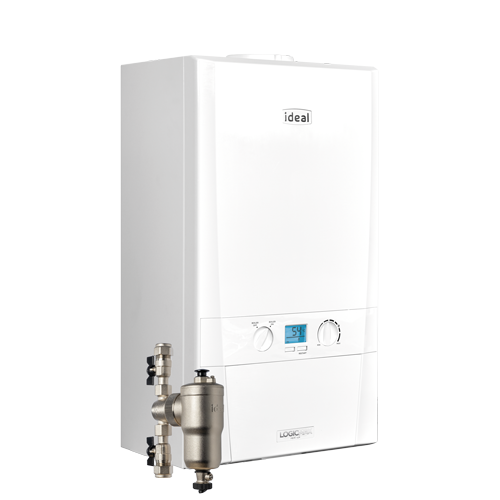

The Logic MAX Heat IE boiler is the next evolution of our award-winning Logic range, with a number of new features, and has been specifically made for Ireland.
Combining the same great features as our award-winning Logic Heat IE, with the addition of a high-quality Ideal System Filter, the Ideal Logic MAX Heat IE boiler is our market-leading offering.
With over 4 million Logic boilers sold, it has the reputation as one of the most reliable boilers available. We back this up with our 10-year warranty as standard for the Logic MAX IE.
The Logic MAX Heat IE is ideal for homes with a hot water tank and a hot water cylinder. Available from 12kW up to 30kW, there is a Logic MAX Heat IE available to homes of any size.
Features
- 10-year warranty as standard
- Made for Ireland
- Which? Recommended
- Reduced running costs due to class leading efficiency
- Large colour screen and simple user interface
- Helpful reminder service indication
- Large output range 12 - 30kW
- Built in Frost Protection
- Enhance boiler performance with Halo Heat & System
- Year-round customer support
- Quiet Mark accredited
We're rated excellent on Trustpilot, here's a few of our reviews.
Product Specification
- Product Information
Logic max heat
LOGIC MAX HEAT MODELS
12
15
18
24
30
LOGIC MAX HEAT² MODELS
27
27
27
27
27
Max Installation weight kg
21.9
21.9
21.9
21.9
21.9
CH Output(kW) min/max mean 70ºC
4.8-12.0
4.8-15.0
4.8-18.0
4.8-24.2
6.1-30.3
CH Output(kW) min/max mean 40ºC
5.1-13.0
5.1-15.9
5.1-19.1
5.1-25.6
6.4-31.0
SEDBUK rating (2005)%
91.1
91.2
91.1
91.2
91.1
SEDBUK rating (2009/2012)%
89.4
89.4
89.7
89.7
89.6
NOx Classification
Class 6
Class 6
Class 6
Class 6
Class 6
LPG conversion
No
N0
Yes
Yes
Yes
Max Horizontal flue
9m
9m
9m
9m
9m
Max Vertical Flue
7.7m
7.5m
7.5m
7.5m
7.5m
Seasonal space heating efficiency class
A
A
A
A
A
Seasonal space heating energy efficiency µs %
93
93
94
94
93
Sound power level indoors LWA Db
36
42
44
50
50
Sound power level, indoors LWA dB(A)
36
38
41
47
49
Documents and resources for Homeowners
Need help with your boiler or control? Download our guides for more technical information on your boiler.
User Guides
Logic MAX Heat IE User GuideInstallation & Servicing
Description
The Logic MAX Heat IE boiler is the next evolution of our award-winning Logic range, with a number of new features, and has been specifically made for Ireland.
Combining the same great features as our award-winning Logic Heat IE, with the addition of a high-quality Ideal System Filter, the Ideal Logic MAX Heat IE boiler is our market-leading offering.
With over 4 million Logic boilers sold, it has the reputation as one of the most reliable boilers available. We back this up with our 10-year warranty as standard for the Logic MAX IE.
The Logic MAX Heat IE is ideal for homes with a hot water tank and a hot water cylinder. Available from 12kW up to 30kW, there is a Logic MAX Heat IE available to homes of any size.
Features
- 10-year warranty as standard
- Made for Ireland
- Compact cupboard fit for a discrete install
- Detailed installer menu
- Quick and easy to install and service
- Wiring connections suitable for wide range of cable sizes
- Enhance boiler performance with Halo Heat & System
- Ideal System filter included in the box
We're rated excellent on Trustpilot, here's a few of our reviews.
Product Specification
- Product Information
Logic max heat
LOGIC MAX HEAT MODELS
12
15
18
24
30
LOGIC MAX HEAT² MODELS
27
27
27
27
27
Max Installation weight kg
21.9
21.9
21.9
21.9
21.9
CH Output(kW) min/max mean 70ºC
4.8-12.0
4.8-15.0
4.8-18.0
4.8-24.2
6.1-30.3
CH Output(kW) min/max mean 40ºC
5.1-13.0
5.1-15.9
5.1-19.1
5.1-25.6
6.4-31.0
SEDBUK rating (2005)%
91.1
91.2
91.1
91.2
91.1
SEDBUK rating (2009/2012)%
89.4
89.4
89.7
89.7
89.6
NOx Classification
Class 6
Class 6
Class 6
Class 6
Class 6
LPG conversion
No
N0
Yes
Yes
Yes
Max Horizontal flue
9m
9m
9m
9m
9m
Max Vertical Flue
7.7m
7.5m
7.5m
7.5m
7.5m
Seasonal space heating efficiency class
A
A
A
A
A
Seasonal space heating energy efficiency µs %
93
93
94
94
93
Sound power level indoors LWA Db
36
42
44
50
50
Sound power level, indoors LWA dB(A)
36
38
41
47
49
Documents and resources for Installers
Need help with your boiler or control? Download our guides for more technical information on your boiler.
