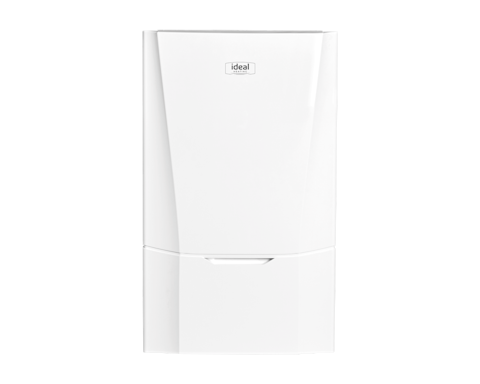

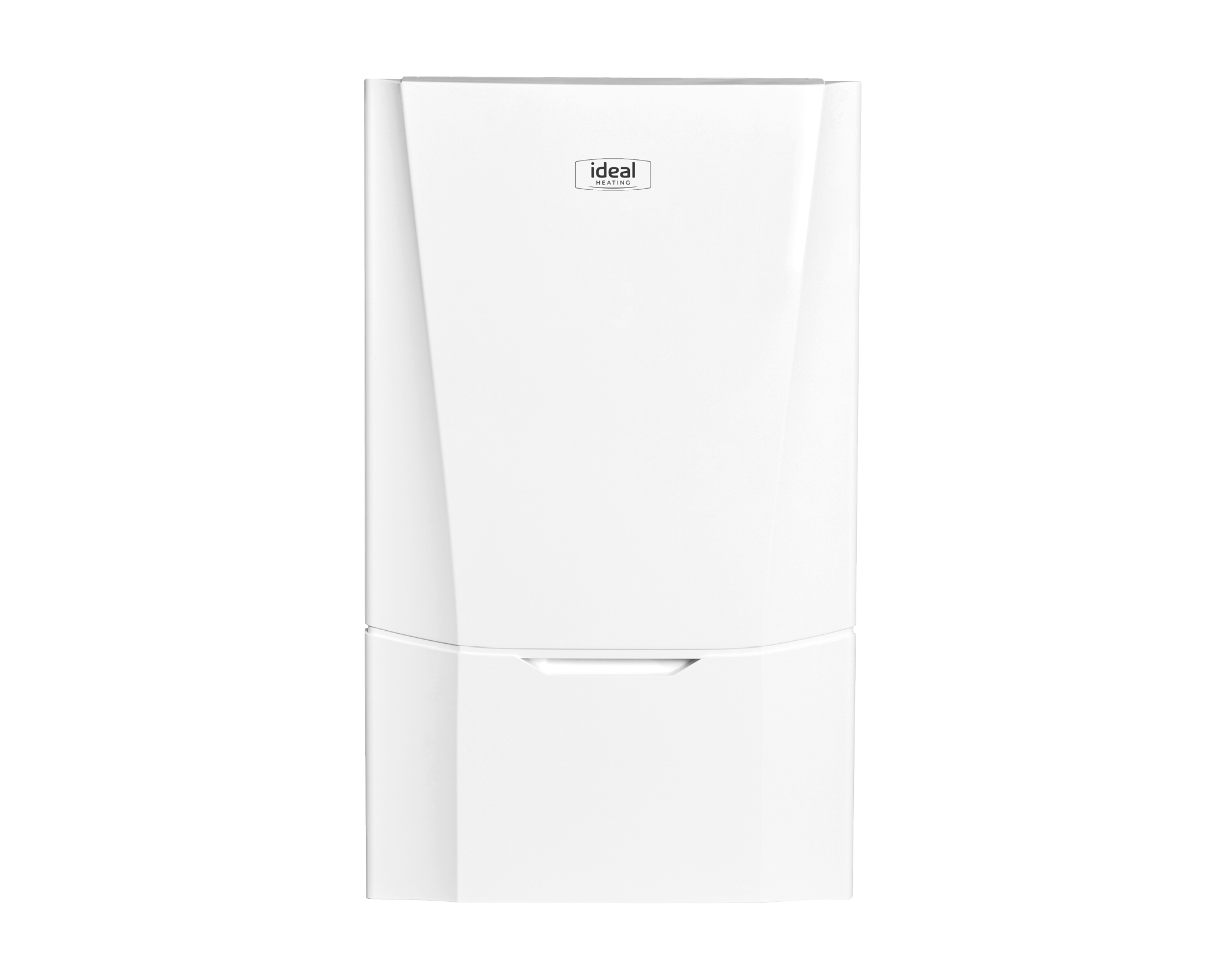

Vogue MAX Combi IE
Choose the content that is relevant to you:
Description
The Vogue MAX Combi IE boiler is our premium boiler and has been specifically made for Ireland.
We’ve combined the same premium offering as the Vogue Gen2 with the addition of a high-quality Ideal System filter, creating one easy to purchase and with fit package.
The combination of stylish aesthetics and premium components means the Vogue MAX IE sits at the pinnacle of the Ideal range. We back this up with our 12-year warranty as standard for the Vogue MAX IE.
The Vogue MAX Combi IE is ideal for homes with a family bathroom and average hot water usage. Available from 26kW up to 40kW, there is a Vogue MAX Combi IE available for homes of any size.
Features
- 12-year warranty as standard*
- Which? Recommended
- Backlit 3.5 LCD full colour screen
- Stylish aesthetics with full width door complete with damped opening
- Multi-function buttons for simplified end user operation
- Helpful reminder service indication
- Rotary controls for easier user operation
- Easy to read pressure gauge
- Built in Frost Protection
- Enhance boiler performance with Halo Combi
- Year-round customer support
We're rated excellent on Trustpilot, here's a few of our reviews.
Product Specification
- Product Information
VOGUE MAX COMBI
COMBI C26
COMBI C32
COMBI C40
Weight (packaged) kg
41.1
41.4
43.4
Max installation weight kg
32.4
33.8
35.4
CH output (kW) min/max @ 70°C
3.7 - 18.0
4.6 - 26.0
5.7 - 32.0
CH output (kW) min/max @ 40°C
4.0 - 19.3
4.9 - 27.9
6.1 - 34.3
DHW output (kW) max
26
32
40
DHW flow rate I/min. 35°C rise
10.6
13.1
16.4
SEDBUK rating (2005) %
91
91.1
91
SEDBUK rating (2009/2012) %
89.1
89.2
89.1
NOx classification
CLASS 6
CLASS 6
CLASS 6
Convertible to LPG
Yes
Yes
Yes
Max horizontal flue
10m
8m
8m
Max vertical flue
10m
10m
10m
Condensing boiler
Yes
Yes
Yes
Seasonal space heating energy efficiency ŋs%
92.7
93.1
93
Sound powr level, indoors Lwa dB
47
50
49
Water heating energy efficiency class
A
A
A
Documents and resources for Homeowners
Need help with your boiler or control? Download our guides for more technical information on your boiler.
User Guides
Vogue MAX Combi IE User GuideInstallation & Servicing
Description
The Vogue MAX Combi IE boiler is our premium boiler and has been specifically made for Ireland.
We’ve combined the same premium offering as the Vogue Gen2 with the addition of a high-quality Ideal System filter, creating one easy to purchase and with fit package.
The combination of stylish aesthetics and premium components means the Vogue MAX IE sits at the pinnacle of the Ideal range. We back this up with our 12-year warranty as standard for the Vogue MAX IE.
The Vogue MAX Combi IE is ideal for homes with a family bathroom and average hot water usage. Available from 26kW up to 40kW, there is a Vogue MAX Combi IE available for homes of any size.
Features
- 12-year warranty as standard*
- Made for Ireland
- Premium components
- Detailed installer menu
- Simple to install & service
- Low boiler lift weight
- Built in filling loop
- PRV outlet pipe included
- Large 10 litre expansion vessel
- Pre-wired pain leads (2m)
- Control box with push-in cable clamps
- Up to 7:1 modulation
- Preformed copper tails
- LPG conversions available on all outputs
- Enhance boiler performance with Halo Combi
- Ideal System Filter included in the box
We're rated excellent on Trustpilot, here's a few of our reviews.
Product Specification
- Product Information
VOGUE MAX COMBI
COMBI C26
COMBI C32
COMBI C40
Weight (packaged) kg
41.1
41.4
43.4
Max installation weight kg
32.4
33.8
35.4
CH output (kW) min/max @ 70°C
3.7 - 18.0
4.6 - 26.0
5.7 - 32.0
CH output (kW) min/max @ 40°C
4.0 - 19.3
4.9 - 27.9
6.1 - 34.3
DHW output (kW) max
26
32
40
DHW flow rate I/min. 35°C rise
10.6
13.1
16.4
SEDBUK rating (2005) %
91
91.1
91
SEDBUK rating (2009/2012) %
89.1
89.2
89.1
NOx classification
CLASS 6
CLASS 6
CLASS 6
Convertible to LPG
Yes
Yes
Yes
Max horizontal flue
10m
8m
8m
Max vertical flue
10m
10m
10m
Condensing boiler
Yes
Yes
Yes
Seasonal space heating energy efficiency ŋs%
92.7
93.1
93
Sound powr level, indoors Lwa dB
47
50
49
Water heating energy efficiency class
A
A
A
Documents and resources for Installers
Need help with your boiler or control? Download our guides for more technical information on your boiler.
